SSL/TLS for the pragmatic

by Julien Vehent / @jvehent

$whois opsec@mozilla.com

OpSec assists Mozillians in defining and operating security controls to ensure that data at Mozilla is protected consistently across the organization.


Why?

  1. We want HTTPS Everywhere
  2. Bad HTTPS can hurt visitors:
    • Ciphers that provide no security
    • Ciphers that are so slow people leave
    • Certificates that display errors in clients
    • Configurations that block legitimate clients


We want GOOD HTTPS Everywhere!

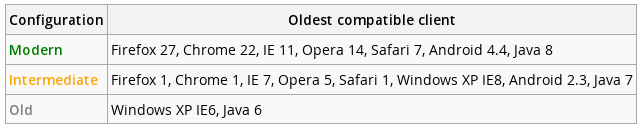

Looking for TLS guidance?

Server Side TLS

Bad SSL/TLS default settings. Good conf takes time.
Mozilla guidelines: Server Side TLS

Cipherscan


$ ./cipherscan mozilla.org

prio  ciphersuite         protocols                    pfs_keysize
1     DHE-RSA-AES128-SHA  SSLv3,TLSv1,TLSv1.1,TLSv1.2  DH,1024bits
2     DHE-RSA-AES256-SHA  SSLv3,TLSv1,TLSv1.1,TLSv1.2  DH,1024bits
3     AES128-SHA          SSLv3,TLSv1,TLSv1.1,TLSv1.2
4     AES256-SHA          SSLv3,TLSv1,TLSv1.1,TLSv1.2
5     DES-CBC3-SHA        SSLv3,TLSv1,TLSv1.1,TLSv1.2

Certificate: trusted, 2048 bit, sha1WithRSAEncryption signature
TLS ticket lifetime hint: None
OCSP stapling: supported
Server side cipher ordering


A bit of history...

1969: ARPAnet

We are all Gentlemen
... and we wear bow ties!

A network
with no security

  • Strange and unrealistic in a cold war context, for a network designed to withstand nuclear attacks
  • Security of communications was always a critical concern. First computers were built by code breaker (bletchley park, alan turing, enigma).

OSI model lacks a SECURITY layer

                +---------------------+
                |     APPLICATION     |7
                +---------------------+
                |    PRESENTATION     |6
                +---------------------+
                |      SESSION        |5
                +---------------------+
                |      TRANSPORT      |4
                +---------------------+
                |      NETWORK        |3
                +---------------------+
                |      DATA LINK      |2
                +---------------------+
                |      PHYSICAL       |1
                +---------------------+


1994: Netscape creates SSL

The primary goal of the SSL protocol is to provide privacy and
reliability between two communicating applications.

  • Privacy (encryption)
  • Identity (authentication)
  • Integrity (message authentication/checksum)


    • Very very smart cryptographers and developers!

Not exactly socket layer, nor transport layer

+---------------------+
|     APPLICATION     |7
+---------------------+
|    PRESENTATION     |6
+---------------------+                +----------------------+
|      SESSION        |5               |SSL Handshake Protocol|
+---------------------+ <============={+----------------------+
|      TRANSPORT      |4               |SSL Record Protocol   |
+---------------------+                +----------------------+
|      NETWORK        |3
+---------------------+
|      DATA LINK      |2
+---------------------+
|      PHYSICAL       |1
+---------------------+


A complex connection
establishment procedure

+----------------+                                    +----------------+
|                |- CLIENT HELLO- - - - - - - - - - ->|1               |
|                |<- - - - - - - - - - - SERVER HELLO |2               |
|                |<- - - - - - - - - - - CERTIFICATE -|3               |
|    C           |<- - - - - - - CERTIFICATE REQUEST -|4               |
|    L           |<- - - - - - - SERVER KEY EXCHANGE -|5      S        |
|    I           |<- - - - - - - - SERVER HELLO DONE -|6      E        |
|    E           |- CERTIFICATE - - - - - - - - - - ->|7      R        |
|    N           |- CLIENT KEY EXCHANGE - - - - - - ->|8      V        |
|    T           |- CERTIFICATE VERIFY- - - - - - - ->|9      E        |
|                |- CHANGE CIPHER SPEC- - - - - - - ->|10     R        |
|                |- CLIENT FINISHED - - - - - - - - ->|11              |
|                |<- - - - - - - --CHANGE CIPHER SPEC-|12              |
|                |<- - - - - - - - - SERVER FINISHED -|13              |
|                |<- - - - - ENCRYPTED DATA - - - - ->|14              |
+----------------+                                    +----------------+


Tons of extra features

  • Perfect Forward Secrecy
  • Session resumption
  • Compression
  • Ciphersuite ordering client/server side
  • dozens of extensions: SNI, OCSP stapling, NPN, elliptic curves selection, renegociation, ...


... and I'm not getting anywhere close certificates and the CA model!

...and an equal number of problems

  • Immensely difficult to implement in a fast and secure way
  • Attack surface is huge: cryptanalysis, message padding, timing attacks, implementation bugs, (re)negotiation, downgrade, ...
  • Billions of eCommerce dollars rely on it: huge pressure to fix bugs, no time to redesign.
  • Improving TLS often translates into adding more complexity. More extensions, more ciphers, more edge cases, ... TLS is not getting simpler any time soon!


We must use SSL/TLS. And we must do it right.

Doing TLS right

The story of Cipherscan
and Server Side TLS

Starring:

  • Ciphersuites ordering
  • Perfect Forward Secrecy and Diffie-Hellman
  • AES, in cpu, in software, with GCM or CBC

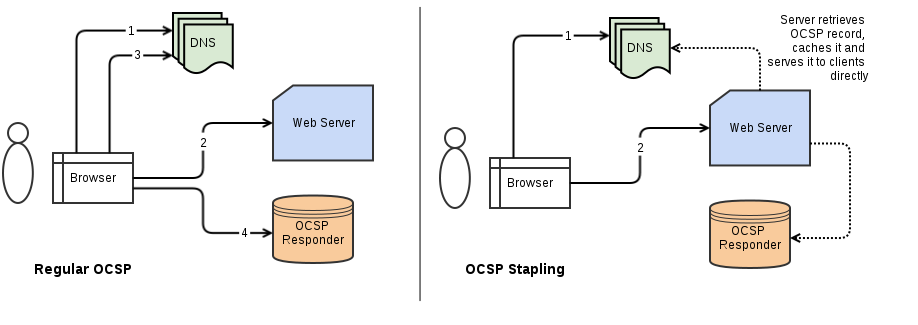

  • OCSP Stapling
  • Session resumption, performance vs security

Ciphersuite ordering

By default, a server will use the first cipher a client proposes
(if it supports it).
Clients can be opinionated, most browsers are.
This is called "client side ordering".

Client side ordering


$ ./cipherscan example.net

prio  ciphersuite              protocols    pfs_keysize
1     DHE-RSA-AES256-SHA       SSLv3,TLSv1  DH,1024bits
2     AES256-SHA               SSLv3,TLSv1
3     DHE-RSA-AES128-SHA       SSLv3,TLSv1  DH,1024bits
4     AES128-SHA               SSLv3,TLSv1
5     RC4-SHA                  SSLv3,TLSv1
6     RC4-MD5                  SSLv3,TLSv1

Certificate: UNTRUSTED, 2048 bit, sha1WithRSAEncryption signature
TLS ticket lifetime hint: None
OCSP stapling: not supported
Client side cipher ordering


Client side ordering

server uses whichever cipher the client presents first


$ openssl s_client -connect example.net:443 -cipher 'AES256-SHA:RC4-SHA'
[...]
SSL-Session:
    Protocol  : TLSv1
    Cipher    : AES256-SHA


$ openssl s_client -connect example.net:443 -cipher 'RC4-SHA:AES256-SHA'
[...]
SSL-Session:
    Protocol  : TLSv1
    Cipher    : RC4-SHA


Server side ordering

selection is enforced by the server


$ openssl s_client -connect google.com:443 -cipher 'AES128-SHA:RC4-SHA'
[...]
SSL-Session:
    Protocol  : TLSv1.2
    Cipher    : AES128-SHA


$ openssl s_client -connect google.com:443 -cipher 'RC4-SHA:AES128-SHA'
[...]
SSL-Session:
    Protocol  : TLSv1.2
    Cipher    : AES128-SHA


Server side ordering

RFC 5246 (TLS 1.2), section 7.4.1.2. Client Hello

   The cipher suite list, passed from the client to the server in the
   ClientHello message, contains the combinations of cryptographic
   algorithms supported by the client in order of the client's
   preference (favorite choice first).  Each cipher suite defines a key
   exchange algorithm, a bulk encryption algorithm (including secret key
   length), a MAC algorithm, and a PRF.  The server will select a cipher
   suite or, if no acceptable choices are presented, return a handshake
   failure alert and close the connection.  If the list contains cipher
   suites the server does not recognize, support, or wish to use, the
   server MUST ignore those cipher suites, and process the remaining
   ones as usual.


In Web Servers

Nginx


ssl_prefer_server_ciphers on;


Apache


SSLHonorCipherOrder     on


AWS ELB


{
  "Policies":[
    {
        {
          "Name":"Server-Defined-Cipher-Order",
          "Value":true
        }
    }
  ]
}


Ciphersuite ordering
is complex

1) security 2) performance 3) compatibility

  • Prefer Perfect Forward Secrecy
  • Prefer modern ciphers: ECDHE, AES-GCM
  • Maintain compatibility: AES-SHA, 3DES
  • Discard insecure protocols: RC4, MD5, SSlv2, SSLv3 (maybe)

Use this

ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384
:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-DSS-AES128-GCM-SHA256:
kEDH+AESGCM:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA:
ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA384:
ECDHE-RSA-AES256-SHA:ECDHE-ECDSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:
DHE-DSS-AES128-SHA256:DHE-RSA-AES256-SHA256:DHE-DSS-AES256-SHA:DHE-RSA-AES256-SHA:
AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA
:AES:CAMELLIA:DES-CBC3-SHA:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!MD5:!PSK:!aECDH:
!EDH-DSS-DES-CBC3-SHA:!EDH-RSA-DES-CBC3-SHA:!KRB5-DES-CBC3-SHA


It's long, but finely tuned for performance and security.

Copy from https://wiki.mozilla.org/Security/Server_Side_TLS

$ ./cipherscan jve.linuxwall.info

prio  ciphersuite                  protocols              pfs_keysize
1     ECDHE-RSA-AES128-GCM-SHA256  TLSv1.2                ECDH,P-256,256bits
2     ECDHE-RSA-AES256-GCM-SHA384  TLSv1.2                ECDH,P-256,256bits
3     DHE-RSA-AES128-GCM-SHA256    TLSv1.2                DH,2048bits
4     DHE-RSA-AES256-GCM-SHA384    TLSv1.2                DH,2048bits
5     ECDHE-RSA-AES128-SHA256      TLSv1.2                ECDH,P-256,256bits
6     ECDHE-RSA-AES128-SHA         TLSv1,TLSv1.1,TLSv1.2  ECDH,P-256,256bits
7     ECDHE-RSA-AES256-SHA384      TLSv1.2                ECDH,P-256,256bits
8     ECDHE-RSA-AES256-SHA         TLSv1,TLSv1.1,TLSv1.2  ECDH,P-256,256bits
9     DHE-RSA-AES128-SHA256        TLSv1.2                DH,2048bits
10    DHE-RSA-AES128-SHA           TLSv1,TLSv1.1,TLSv1.2  DH,2048bits
11    DHE-RSA-AES256-SHA256        TLSv1.2                DH,2048bits
12    DHE-RSA-AES256-SHA           TLSv1,TLSv1.1,TLSv1.2  DH,2048bits
13    AES128-GCM-SHA256            TLSv1.2
14    AES256-GCM-SHA384            TLSv1.2


15    AES128-SHA256                TLSv1.2
16    AES256-SHA256                TLSv1.2
17    AES128-SHA                   TLSv1,TLSv1.1,TLSv1.2
18    AES256-SHA                   TLSv1,TLSv1.1,TLSv1.2
19    DHE-RSA-CAMELLIA256-SHA      TLSv1,TLSv1.1,TLSv1.2  DH,2048bits
20    CAMELLIA256-SHA              TLSv1,TLSv1.1,TLSv1.2
21    DHE-RSA-CAMELLIA128-SHA      TLSv1,TLSv1.1,TLSv1.2  DH,2048bits
22    CAMELLIA128-SHA              TLSv1,TLSv1.1,TLSv1.2
23    DES-CBC3-SHA                 TLSv1,TLSv1.1,TLSv1.2

Certificate: trusted, 2048 bit, sha256WithRSAEncryption signature
TLS ticket lifetime hint: 300
OCSP stapling: supported
Server side cipher ordering


PFS and Diffie-Hellman

TLS security model without PFS

  1. Client starts a TLS handshake
  2. Client encrypts a session secret with the server's public key
  3. Server decrypts the session secret
  4. Client and server encrypt data with the session secret


Problem: one private key decrypts all session secrets, and thus all data, from past and future connections.

PFS and Diffie-Hellman

TLS security model with PFS

  1. Client starts a TLS handshake
  2. Server picks DHE or ECDHE, sends the necessary elements
  3. Client and Server agree on an ephemeral session key
  4. Server's private key cannot decrypt the session key

Diffie-Hellman

Server picks a prime p=23, a generator g=5 and a secret a=6
Server calculates A = g^a mod p = 5^6 mod 23 = 8
Server sends p, g and A to Client ---->

                        Client picks a secret b=15
                        Client calculates B = g^b mod p = 5^15 mod 23 = 19
                  <---- Client sends B to Server

Server calculates session secret s = B^a mod p = 19^6 mod 23 = 2

                    Client calculates session secret s = A^b mod p = 8^15 mod 23 = 2

            ~ Server and Client both use session secret s = 2 ~


The session secret "s" is never sent over the wire and is specific to one session.

PFS ciphers: DHE & ECDHE


$ ./cipherscan accounts.firefox.com

prio  ciphersuite                  protocols              pfs_keysize
1     ECDHE-RSA-AES128-GCM-SHA256  TLSv1.2                ECDH,P-256,256bits
2     ECDHE-RSA-AES128-SHA256      TLSv1.2                ECDH,P-256,256bits
3     ECDHE-RSA-AES128-SHA         TLSv1,TLSv1.1,TLSv1.2  ECDH,P-256,256bits
4     DHE-RSA-AES128-SHA           TLSv1,TLSv1.1,TLSv1.2  DH,1024bits
[...]


Advanced Encryption Standard

Two modes:

  1. CBC: standard, but vulnerable to many attacks.
    AES128-SHA, DHE-RSA-AES128-SHA, ECDHE-RSA-AES128-SHA,...
  2. GCM: safer and faster, but rarely implemented yet
    AES128-GCM-SHA256, DHE-RSA-AES128-GCM-SHA256, ECDHE-RSA-AES128-GCM-SHA256, ...
    1. Use AES-NI when available!

              type              8192 bytes
              ----------------+-----------
              aes-128-gcm      1218628.27k
              aes-128-cbc       624443.39k
              camellia-128-cbc  160815.26k


Prefer AES-128!

  • AES-128 is faster
  • AES-128 is more resistant to timing attacks


On the choice between AES256 and AES128: I would never consider using AES256, just like I don’t wear a helmet when I sit inside my car. It’s too much bother for the epsilon improvement in security. Vincent Rijmen, AES co-author, Dec2013

OCSP Stapling

Handling certificates revocation is hard.

  1. CRL became too big to download in browsers
  2. OCSP is unreliable and slows down connections

OCSP Stapling


$ openssl s_client -connect mozilla.org:443 -status
[...]
OCSP Response Data:
    OCSP Response Status: successful (0x0)
    Response Type: Basic OCSP Response
    Version: 1 (0x0)
    Responder Id: 4C58CB25F0414F52F428C881439BA6A8A0E692E5
    Produced At: Nov 15 09:58:00 2014 GMT
    Responses:
    Certificate ID:
      Hash Algorithm: sha1
      Issuer Name Hash: B8A299F09D061DD5C1588F76CC89FF57092B94DD
      Issuer Key Hash: 4C58CB25F0414F52F428C881439BA6A8A0E692E5
      Serial Number: 04E4EB1E7F8C5109DBBF0C1C7F411691
    Cert Status: good
    This Update: Nov 15 09:58:00 2014 GMT
    Next Update: Nov 22 10:13:00 2014 GMT


OCSP Stapling conf

Apache


# in global conf
SSLStaplingCache        shmcb:/var/run/ocsp(128000)


    SSLUseStapling                      on
    SSLStaplingResponderTimeout         5
    SSLStaplingReturnResponderErrors    off



Nginx


server {
    ssl_stapling            on;
    ssl_stapling_verify     on;
    ssl_trusted_certificate /path/to/root_CA_cert_plus_intermediates;
    resolver                127.0.0.1;
}


Session Resumption

Negotiating session secrets is expensive.
Need to allows a client & server to reuse a session secret.

  1. Session ID: server caches the session locally, gives an ID to the client, client sends ID with new connections.
  2. Session Ticker: server encrypts session data with local key, hands it to client for resubmission, doesn't keep local cache.


Both method depend on server security. Compromise the cache or the ticket key == gain access to all session secrets.

Using session resumption safely

  1. Limit cache size

    # nginx
    ssl_session_timeout 5m;
    ssl_session_cache shared:SSL:5m;


    # apache
    SSLSessionCache shmcb:/path/to/ssl_gcache_data(5120000)

  2. Restart servers regularly to flush old sessions
    $ sudo service (nginx|apache2) graceful


All good?

Now... The Traps

  • Beware of old clients!
    • Windows XP pre-SP3: SHA1 certs, SSLv3 only
    • Java 6: no support for DHE > 1024 bits
    • search engine bots often use old libraries


  • Server support is like snowflakes, there aren't two identical
    • Nginx/Apache depend on the version of OpenSSL
    • Vendors are typically 2 to 4 years behind standards
    • AWS ELBs have limited configurability

Use a Guide

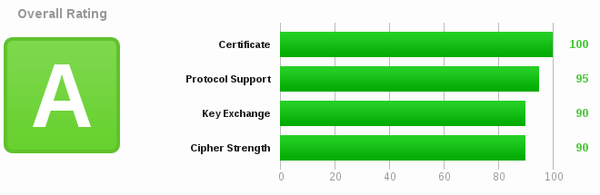

Use a Tool

helping admins

analyze.py [link]

Extension of Cipherscan to facilitates configuration evaluation.

cipherscan mozilla.org


$ ./cipherscan mozilla.org
......
Target: mozilla.org:443

prio  ciphersuite         protocols                    pfs_keysize
1     DHE-RSA-AES128-SHA  SSLv3,TLSv1,TLSv1.1,TLSv1.2  DH,1024bits
2     DHE-RSA-AES256-SHA  SSLv3,TLSv1,TLSv1.1,TLSv1.2  DH,1024bits
3     AES128-SHA          SSLv3,TLSv1,TLSv1.1,TLSv1.2
4     AES256-SHA          SSLv3,TLSv1,TLSv1.1,TLSv1.2
5     DES-CBC3-SHA        SSLv3,TLSv1,TLSv1.1,TLSv1.2

Certificate: trusted, 2048 bit, sha1WithRSAEncryption signature
TLS ticket lifetime hint: None
OCSP stapling: supported
Server side cipher ordering


analyze.py -t mozilla.org


$ ./analyze.py -t mozilla.org
mozilla.org:443 has old ssl/tls

Changes needed to match the intermediate level:
* disable SSLv3
* consider using a SHA-256 certificate
* consider using DHE of at least 2048bits and ECC of at least 256bits

Changes needed to match the modern level:
* remove cipher AES128-SHA
* remove cipher AES256-SHA
* remove cipher DES-CBC3-SHA
* disable TLSv1
* disable SSLv3
* use a SHA-256 certificate
* use DHE of at least 2048bits and ECC of at least 256bits


analyze.py levels map Mozilla's guidelines

use flag -l to evaluate against a specific level

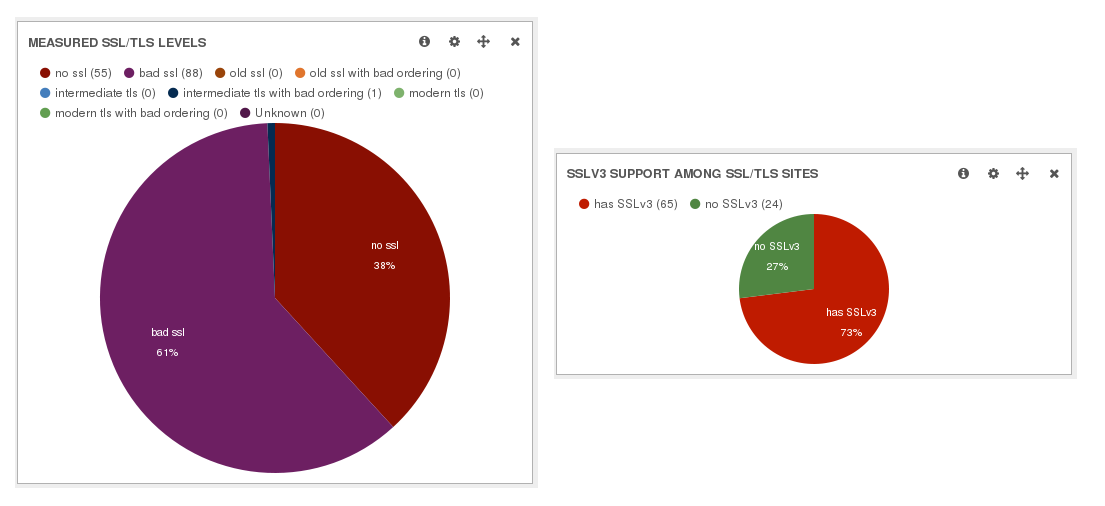

There is much work to do...
